Mast Lifts

One Lift Mast, Type ELP1:

7 lifting capacities from 300 to 2500 kg,
maximum platform dimensions 2 x 2.8 m,
minimum building height between 80 (likely does not require a pit) and 200 mm,

Two Fixed Masts Side by Side, Type ELP2A:

4 lifting capacities from 1000 to 3000 kg,
maximum platform dimensions up to 6 x 3 m,
minimum building height between 200 and 400 mm.

Two Opposite Fixed Masts, Type ELP2B:

6 lifting capacities from 1000 to 5000 kg,
maximum platform dimensions up to 6 x 3 m,
minimum building height between 250 and 450 mm.

General Information

Vertical lift up to 12 m height.

Attachment of the mast(s) to a sturdy wall.

For goods only, passenger transport is prohibited!
Compliant with the Machinery Directive 2006/42/EC.
Numerous options available.

Hydraulic lift cylinder(s) with chain transmission,
Separately located hydraulic power unit, three-phase 230 or 400V, optionally single-phase 230V up to 1000 kg lifting capacity,
Lifting speed 100 mm/sec, optionally 150 mm/sec.

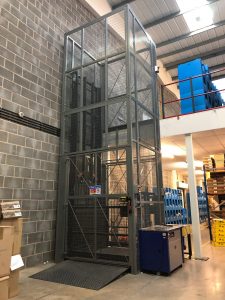

Note that the setup in the photos is fictional and serves only to show the device.
In reality, according to the law, the landings must be enclosed with solid or mesh walls, and the accesses with doors that automatically lock.
